Niobium Plate Suppliers
Niobium Plate Stockist, Niobium Sheet Manufacturers, Suppliers & Traders in Mumbai, Niobium Strips distributor
Hot Rolled Niobium Plate, Hot Rolled Niobium Plate, Sintered Niobium Sheet Stockist, Niobium Slitting Coils dealers

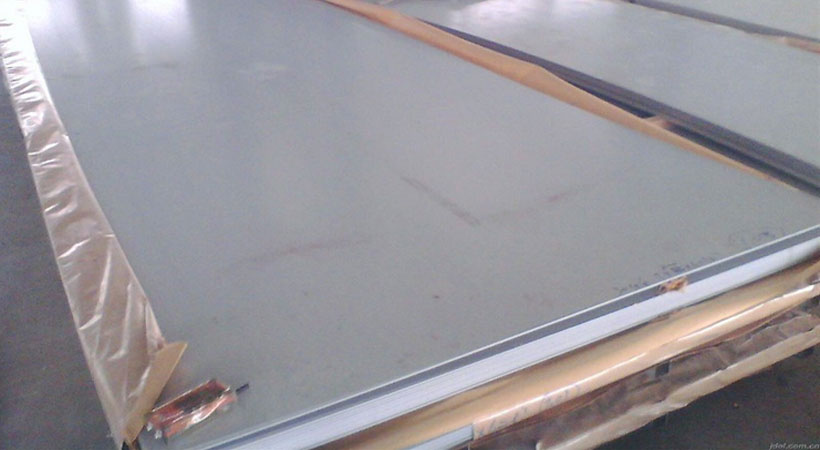

Niobium Plate is a ductile, shiny metal is also known as columbium plate. These Niobium Sheet resists corrosion and maintains excellent physical properties at high temperatures. Niobium sheet and plate are supplied with a cold-rolled and chemically-cleaned surface. Because of their strength and workability, very thin sheets of niobium can be clad to other surfaces, providing superior corrosion protection and cost effectiveness. Our niobium titanium alloys and ultra-high purity niobium sheets (R04220 RRR Grade) are engineered for superconductor, supercollider, and high energy particle accelerator applications. MD Exports LLP offer all common industrial standards such as ASTM B393 R04210 or the more stringent ASTM B393 R04200 Reactor Grade specification.
Common Specifications of Niobium Plate
- ASTM B393 R04200
- Reactor Grade Pure Niobium
- ASTM B393 R04210
- Commercial Grade Pure Niobium
- ASTM B393 R04251
- Reactor Grade Nb 1% Zirconium
- ASTM B393 R04261
- Commercial Grade Nb 1% Zirconium
- ASTM B393 R04220
- RRR Grade pure Niobium
AVAILABLE ALLOYS:
- Niobium
- Niobium 1% Zirconium
- Niobium 47% Titanium
- Niobium 50% Titanium
- Niobium 55% Titanium
- C103™ (89% Nb, 10% Hf, 1% Ti)*
*C103™ is a trademark of Allegheny Technologies Inc.
| Niobium Sheet & Plate Stockist | ||
|---|---|---|
| .002" x 12" x 24" | .050" x 12" x 24" | 1.00" x 12" x 24" |
| .004" x 12" x 24" | .060" x 12" x 24" | 1.50" x 12" x 24" |
| .005" x 12" x 24" | .080" x 12" x 24" | 2.00" x 12" x 24" |
| .010" x 12" x 24" | .125" x 12" x 24" | 2.50" x 12" x 24" |
| .015" x 12" x 24" | .188" x 12" x 24" | 3.00" x 12" x 24" |
| .020" x 12" x 24" | .250" x 12" x 24" | 3.50" x 12" x 24" |
| .025" x 12" x 24" | .375" x 12" x 24" | 4.00" x 12" x 24" |
| .030" x 12" x 24" | .500" x 12" x 24" | |
| .040" x 12" x 24" | . 750" x 12" x 24" | |
| Rod: | ||
Niobium Plate Chemistry
Type I (R04200) – Reactor Grade 0.1% Ta Max.
Type II (R04210) – Commercial Grade 0.2% Ta Max.
GSNb – Per H.C. Starck Internal Specification
Niobium Plate Metallurgical Characteristics
Niobium Plate Material is single-phase niobium. Stress relieve at 650°C, Re-crystallize at 950°C.
| Dimensions | |
|---|---|
| Niobium Foil | 0.001” to 0.006” thick by widths up to 12” wide |
| Niobium Sheet |
0.006” to 0.1875” thick by widths up to 40” wide |
| Niobium Plate |
0.1875” to 1” thick in common widths |
Niobium Plate & Sheet customer specified specialty sizes of all materials:
| Physical Properties of Niobium | |
| Atomic Number | 41 |
| Atomic Weight | 92.91 |
| Density | 8.57 gm/cc (0.31 lbs/in3) |
| Melting Point | 2468°C |
| Coefficient of Expansion | (20° – 100°C) 7.1 X 10-6/K |
| Specific Heat (27°C) | 0.065 cal/gm/°C |
| Thermal Conductivity | 54 W/m K |
| Electrical Resistivity (0° – 100°C) | 14.5 microhm-cm |
| Crystal Structure | krz |
Mechanical Properties of GSNb (annealed) Niobium : |
|
| GSNb meets the mechanical properties requirements of ASTM B393 Type 2 Commercial Grade Niobium (UNS R04210) | |
| Tensile Strength | 18,000 psi (125 MPa) minimum |
| Yield Strength | 10,500 psi (73 MPa) minimum |
| Elongation | 20 % minimum (above 0.004” thick) 15 % minimum (0.002 to 0.0039” thick) |
Additional information not included in ASTM B363
Hardness (Typical): HV 10
Grain Size (ASTM): 6 or finer (45 ums) for thicknesses < 0.010”
Specialized in
- (2N) 99% Niobium Plate
- (2N5) 99.5% Niobium Plate
- (3N) 99.9% Niobium Plate
- (3N5) 99.95% Niobium Plate
- (4N) 99.99% Niobium Plate
- (5N) 99.999% Niobium Plate
Niobium Plate Properties (Theoretical)
| Molecular Weight | 92.9 |
|---|---|
| Appearance | Silvery |
| Melting Point | 2468 °C |
| Boiling Point | 4742 °C |
| Density | 8.57 g/cm3 |
| Electrical Resistivity | 12.5 microhm-cm @ 0 °C |
| Electronegativity | 1.6 Paulings |
| Heat of Vaporization | N/A |
| Poisson’s Ratio | 0.4 |
| Specific Heat | 0.064 Cal/g/K @ 25 °C |
| Tensile Strength | N/A |
| Thermal Conductivity | 0.537 W/cm/K @ 298.2 K |
| Thermal Expansion | 7.3 µm/(m·K) |
| Vickers Hardness | 1320 MPa |
| Young’s Modulus | 105 GPa |
Niobium Plate Processing
The majority of normal processing can be performed on Niobium Plate
MD Exports LLP Offers Following process for Niobium Plate
Niobium Plate Packing & Shipping
Each order is packaged according to the customer’ s standards including preparation for export such as wooden case, pallet or according to customer’s requirement All shipping documentation is provided for Niobium Plate delivery from mill to customer.
Every assignment begins with a visit of our experienced sales representative who assesses the volume / weight of the belongings and brief the client about the nature of packing required as well as various documentation formalities when moving from India.
Supply Area :
We Supply Our Niobium Plate to various countries like Saudi arabia, Kuwait, Qatar, Oman, Yemen, UAE, Iran, Turkey, Kazakhstan, Greece, Singapore, Thailand, Indonesia, Vietnam, South Africa,South America,Brazil, India, Australia, Egypt.
Niobium Plate Inventory
Niobium Plate Application Industries
MD Exports LLP offers a broad range of Niobium Plate through a worldwide network of stock-keeping branches.these Niobium Plate is use in various industries like:
- Fertilizers Industry
- Aerospace Industry
- Nuclear Power Plant Industry
- Chemical Industry
- Oil & Gas Industry
- Refineries Industry
- Petrochemical Industry
- Paper Industry
MD Exports LLP inc is largest suppliers of Niobium Plate. we are supplying Niobium Plate in Saudi arabia, Kuwait, Qatar, Oman, Yemen, UAE, Iran, Turkey, Kazakhstan, Greece, Singapore, Thailand, Indonesia, Vietnam, South Africa,South America,Brazil, India, Australia, Egypt.we assured our client that we are standing behind our product which we have supplied as well as we issued a quality certificate along with our product which we manufacture supplies and exports
